Mini-Bank™ 1000 Series
![](images/mb1000b.gif)
The Most Affordable ATM in the Market
Built with the same technology and quality as the Mini-Bank 2000 series ATM,
the Mini-Bank 1000 series ATM represents outstanding values and solid
performance, and it is suitable for a retail store with a very low transaction
volume. The Mini-Bank 1000 series ATM provides a simple, reliable, and
profitable ATM solution for almost any retail location.
Announcing Immediate Mini-Bank 1000 Availability to Authorized Cross
Canadian Distributors!
The release of our MB-1000 to Canada includes all the standard features noted
below, including:
- CDU and cassette configuration for Canadian notes
- English and French language support
- Certified with CUL (equivalent to CSA) and Industry Canada
- Compliant with TCS Canada processor
Technology and Experience
Hyosung Computer, our manufacturer, has more than 20 years of experience in
developing, manufacturing, and servicing full function ATMs for large banks.
Together with Hyosung Computer, we design, develop, and manufacture our own
components including the Cash Dispenser Unit. We also develop our own
Application software and RMS software to control and manage ATMs. With the
ownership of core technology and design control, we continuously improve our
existing product lines and quickly expand to new product lines to respond to
market changes and adapt to new technological development.
Standard
Features |
- Ergonomic design
- Combination Lock
- Swipe type card reader
- Meet ADA Guideline
- 6" mono LCD with 320 x 240 resolution.
- 2400 baud Modem
- 3 1/2" wide thermal printer
- Tactile feed back keyboard with integrated braille
- Illuminated signage
- Dial-up connection for low cost communication
- 4 advertising messages
- Front loading for easy service and maintenance
- Small space saving foot print
- Stores up to 2000 electronic journal
- High speed friction feed cash dispensing unit (7 notes per second)
- Large capacity cassette (1000 notes)
- Reject bin
- Two language support (English and Spanish)
- Remote Management System
- Training Video
- Credit card logo
|
Optional
Features |
|
Operating
Environment |
- Power: 110/220VAC manual switch
- Phone Line: Phone line with RJ-11 jack (dedicated phone line
preferred)
- Temperature: 40F - 104F
- Humidity: 15% - 80% non-condensing
|
Dimension
& Weight |
- Height: 52 inches
- Width: 19 inches
- Depth: 22 inches
- Weight w/o packaging: 265lb
- Packaging: 30lb
|
Complete Quality
The Mini-Bank 1000 series ATM is designed, engineered, and manufactured under
ISO 9001 certification by the International Standard Organization. The ISO 9001
stamp of approval assures that each feature meets demanding standards of
durable, trouble-free operation with minimal downtime. The Mini-Bank's modular
design supports diagnostics and module based replacement for easy maintenance
and service.
The Most Affordable ATM
As the number of ATMs grows, customers are expecting an ATM even in a very small
retail store where transaction volume is low. The Mini-Bank 1000 series is
designed and packaged to meet the ATM requirement for a very small retail store.
It has reliable performance of cash dispensing function, while it minimizes the
total cost of ownership. Almost all of its features come as standard.
Application software and Remote Management System software provides diagnostic
capability while the modular design provides easy and quick repair and
replacement. We ship the Mini-Bank ATM to the customer site with complete
configuration to save time and expenses. Each Mini-Bank series ATM comes with
standard one year parts and labor warranty. An extended parts and replacement
warranty is also available.
The Mini-Bank 1000 Program
We offer the Mini-Bank 1000 program through our authorized distributors. The
program includes all the necessary components for ATM and all the necessary
expenses to ATM at a customer site at the manufacturer suggested price. This
program includes hardware and software, freight, installation, and training.
This program simplifies purchasing and ownership experience.
Security
The Mini-Bank 1000 series ATM is designed to protect not only the cash in ATM
but also the vital system and transaction information recorded in ATM. The cash
has three levels of protection and access to system and transaction information
is stored in a non-volatile memory and protected by two password levels.
Cash Dispenser Unit
We have developed a new cash dispenser unit for the Mini-Bank 1000 series ATM.
It is based on the Mini-Bank 2000 series cash dispenser unit and it employees
the friction feed mechanism. It dispenses 7 notes per second. The cash cassette
holds 1000 notes, half the capacity of a Mini-Bank 2000 cash cassette.
Receipt Printer
We have developed a new receipt printer for the Mini-Bank 1000 series ATM. It
takes 3 1/8' wide receipt paper roll and it can print up to 2000 receipts. It
loads paper automatically and pushes paper out when it finishes printing.
Advertising Capability
The Mini-Bank 1000 series ATM provides advertisement capability through 4 text
based advertisement messages. The advertisement message can be changed remotely
through RMS software.
Remote Management System Software
Our RMS software enables you to manage Mini-Bank series ATMs remotely. It
receives and archives journals, displays error messages, performs remote
diagnostics, transfers graphics images and performs software upgrades.
Plug and Play
Every Mini-Bank 1000 series ATM is built to your order. It is already configured
and tested before we ship directly to a location for installation. Installation
and initial setup only requires the ATM to be bolted down, loaded with cash,
plugged into a phone and power source, and turned on. Now it is ready to
generate additional profit. It is that simple.
Cross Mini Bank 2000 series
![MB2100 1shp.JPG (21270 bytes)](images/mb2200.jpg)

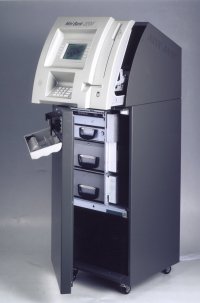

Mini-Bank™ 2000 Series
ATM for Today and Tomorrow
The Mini-Bank 2000 series ATM represents a combination of top-of-the-line
quality and solid performance. The attractive and functional Mini-Bank 2000
series ATM enables you to respond to market changes and adapt as technology
moves forward. The Mini-Bank 2000 series ATM provides a simple, reliable, and
profitable ATM solution for even the most demanding retail location.
Technology and Experience
Hyosung Computer, our manufacturer, has more than 20 years of experience in
developing, manufacturing, and servicing full function ATMs for large banks.
Together with Hyosung Computer, we design, develop, and manufacture our own
components including the Cash Dispenser Unit. We also develop our own
Application software and RMS software to control and manage ATMs. With the
ownership of core technology and design control, we continuously improve our
existing product lines and quickly expand to new product lines to respond to
market changes and adapt to new technological development.
Standard
Features for
MB-2100 & MB-2200 |
- Ergonomic design
- Swipe type card reader
- 6" LCD with 256 color 320 x 240 resolution.
- 3 1/8" wide thermal printer with cut and push technology
- Tactile feed back keyboard with integrated braille
- 56K Modem and Dial-up connection for low cost communication
- 10 advertising screens
- Stores up to 2000 electronic journal
- High speed friction feed cash dispensing unit (7 notes per second)
- Large capacity cassette (2000 notes)
- Second Cassettes (for MB-2200)
- Reject bin
- Five language support (English, Spanish, French, Korean, Japanese)
- Illuminated signage
- Electronic Lock
- UL 291 business hour
- Front loading for easy service and maintenance
- Small space saving foot print
- Meet ADA Guideline
- Remote Management System
- Training Video
- Credit card logo
|
Optional
Features |
|
Operating
Environment |
- Power: 110/220VAC manual switch
- Phone Line: Phone line with RJ-11 jack (dedicated phone line
preferred)
- Temperature: 40F - 104F
- Humidity: 15% - 80% non-condensing
|
Dimension
& Weight |
- Height: 52 inches
- Width: 19 inches
- Depth: 22 inches
- Weight w/o packaging: 295lb (MB-2100) 320lb (MB-2200)
- Packaging: 30lb
|
Complete Quality
The Mini-Bank 2000 series ATM is designed, engineered, and manufactured under
ISO 9001 certification by the International Standard Organization. The ISO 9001
stamp of approval assures that each feature meets demanding standards of
durable, trouble-free operation with minimal downtime. The Mini-Bank's modular
design supports diagnostics and module based replacement for easy maintenance
and service.
Total Cost of Ownership
The Mini-Bank 2000 series is designed and packaged to minimize the total cost of
ownership. Almost all of its features come as standard. Application software and
Remote Management System software provides diagnostic capability while the
modular design provides easy and quick repair and replacement. We ship the
Mini-Bank ATM to the customer site with complete configuration to save time and
expenses. Each Mini-Bank series ATM come with standard one year parts and labor
warranty. An extended parts and replacement warranty is also available.
Security
The Mini-Bank 1000 series ATM is designed to protect not only the cash in ATM
but also the vital system and transaction information recorded in ATM. It has
UL291 business hour (optional level 1) certification and it comes with
electronic lock for safety and convenience. Access to system and transaction
information is stored in non-volatile memory and protected by two levels of
secure password.
Advertising Capability
The Mini-Bank 2000 series ATM provides advertisement capability through 10
lifelike on-screen color graphics displays, coupon dispensing (for Mini-Bank
2200), and receipt trailer coupons. These features provide additional service
and revenue opportunities.
Dual Cassette System
The Mini-Bank 2200 comes with two cassettes to support a second denomination or
additional products such as stamps, phone cards, and coupons. This can be
combined with on-screen advertisements to promote products and generate
additional profit.
Multi Language Support
The Mini-Bank 2000 series ATM supports 5 languages; English, Spanish, French,
Japanese, and Korean.
Remote Management System Software
Our RMS software enables you to manage Mini-Bank series ATMs remotely. It
receives and archives journals, displays error messages, performs remote
diagnostics, transfers graphics images and performs software upgrades.
Plug and Play
Every Mini-Bank 2000 series ATM is built to your order. Pre-configured and
tested, the ATM is shipped directly to the selected location for installation.
Installation and setup only requires the ATM to be bolted down, loaded with
cash, plugged into a phone and power source, and turned on. Now the ATM is ready
to generate additional profit for businesses. It's that simple.
